Air Hoist

General Specification

Model	QJ-0.5	QJL-0.5	QJ-1	QJ-2	QJ-3	QJ-5
Rated Line Pull (lbs)	1124	1124	2248	4496	6744	11240
Rope Speed (ft/min)	3936	3936	78.72	7872	65.6	114.8
Rope Diameter (in)	0.31	0.31	0.43	0.63	0.79	0.79
Rope Capacity (ft)	393.6	131.2	328	492	656	229.6
Air Pressure (psi)	87	87	87	87	87	87
Overall Dimensions (in)	26*14*17	9*12*15	29*16*21	39*21*30	60*29*38	49*35*39
Weight (lbs)	257	220	356	968	1507	1919

Hydraulic Winch

General Specification

Model	YJ-3	YJ-5
Rated Line Pull(lb)	6744	11240
Line Speed(ft/min)	88.56	36.08
Rope Capacity(ft)	492	328
Rope Diameter(in)	5/8	7/8"
Overall Dimensions(in)	27*19*17	35*20*28
Weight(lbs)	506	1078

Model	GC-JIII	CJ-6000F	CJ-7000F
Rated Depth (ft)	13120	19685	22965
Rated Power (HP)	10	10	10
Max. Hydraulic Pressure (psi)	2280	2280	2280
Slickline Dia.(in)	0.087	0.092	0.092
Overall Dimension (in)	35x30x55	35x30x55	35x30x55
Weight (lbs)	1500	1700	1764

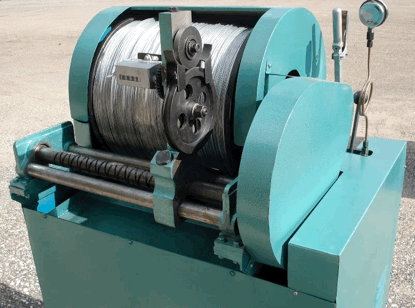

Wireline Unit
